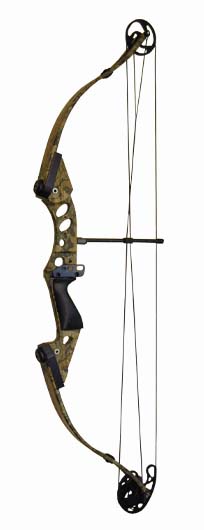

Shadow - Solo Cam (1998 - 2000)

A high performance bow at an affordable price. Fitted with our top of the range cams, and a fully CNC machined riser and pockets.

A slightly less reflexed riser makes this an ideal bow for either field or target.

3 different interchangeable injection moulded grips to find that perfect fit, all supplied with the bow.

Axle Length --- 38"
Brace Height --- 8"
Mass Weight --- 4lb 1oz
IBO Speed --- 285 fps
Cam Type --- 70% Let off
Limb Options --- SFC Glass
Draw Lengths --- 27-31"
Draw Weights --- 30,40,50,60,70

Cable lengths
solo cam (MK1)
Standard cables
41 1/4
Split system cable LONG
N/A
Split system cable SHORT
N/A
Strings
97
Module
Solo cam (MK1)
A
27
B
28
C
29
D
30
E
31

Solo Cam

5" modular adjustment system, plus 1/2" fine tune up or down via the built in peg system.

70% let off and a very positive stop makes this cam a dream to shoot.

Level nock point travel makes it easy to tune, and if you want to minimize your setting up time then this is the cam for you.
